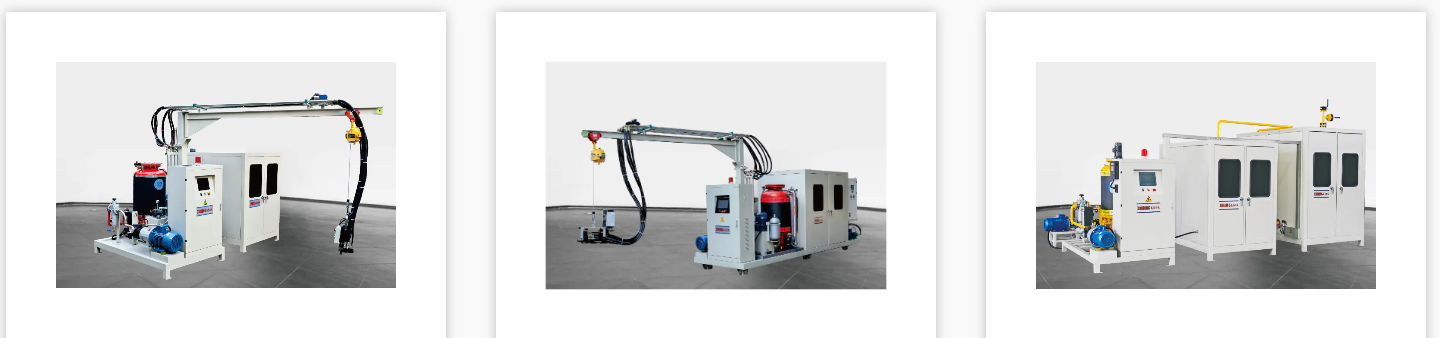

What is a cyclopentane premix system?

A cyclopentane premix system is a specialized equipment system used in the polyurethane (PU) foaming process. It is primarily used to mix cyclopentane (cyclopentane) as a blowing agent with other raw materials (such as polyether/polyester polyols and isocyanates) in precise proportions to create a uniform premix. This premix is then used to produce polyurethane foam (such as the insulation layer of refrigerators and freezers).

1. Core Components and Functions
Cyclopentane Storage and Delivery Unit
Cyclopentane is flammable and explosive (flash point approximately -37°C) and requires explosion-proof design. It is typically equipped with inert gas protection, leak detection, and emergency shut-off devices.
Precise delivery is achieved via metering pumps or gear pumps.

Polyol Premix System
Cyclopentane is premixed with polyols (polyether/polyester) to form a stable, uniform mixture.
Use high-shear agitation or static mixers to ensure uniform dispersion.

Precise Metering and Mixing
The ratio of cyclopentane to polyol is controlled via a mass flow meter or volumetric metering system (typically cyclopentane accounts for 5%-15%).
It is instantly mixed with an isocyanate (such as MDI) in a high-pressure mixing head, triggering the foaming reaction.

Safety and Environmentally Friendly Design
The entire system is explosion-proof (Ex d/e certified) and equipped with gas concentration monitoring, static elimination, and ventilation systems.
Enclosed pipeline transportation reduces the risk of volatilization and leakage.

2. Features and Advantages of the Cyclopentane Premix System
Environmental Benefits
Zero Ozone Depletion Potential (ODP=0): Cyclopentane contains no chlorine and does not damage the ozone layer, complying with environmental regulations and replacing harmful blowing agents such as traditional CFCs (such as R11) and HCFCs (such as R141b).
Low Global Warming Potential (GWP≈10): Compared to hydrofluorocarbon blowing agents (HFCs, which have a GWP of thousands), cyclopentane has an extremely low GWP, minimizing its impact on climate change. No VOC Emissions: Used in a closed system, volatile organic compound (VOC) emissions are controllable, aligning with green manufacturing trends.

Cost-Effectiveness
Low Raw Material Cost: Cyclopentane, a petroleum derivative, is significantly cheaper than newer, environmentally friendly blowing agents such as hydrofluoroolefins (HFOs) (for example, HFO-1233zd can be 5-10 times more expensive than cyclopentane).
Moderate Equipment Modification Cost: While explosion-proof design is required, the modification difficulty and cost of a cyclopentane premix system are lower than alternatives (such as all-water foaming or CO₂-assisted foaming).
Optimized Energy Consumption: Cyclopentane's high foaming efficiency reduces raw material usage and overall production costs.

Excellent Foam Performance
Excellent Thermal Insulation: PU foam produced with cyclopentane boasts a high closed-cell ratio and low thermal conductivity (approximately 18-22 mW/m·K), making it particularly suitable for applications with stringent insulation requirements, such as refrigerators and freezers. Excellent Mechanical Strength: The foam's compressive strength and dimensional stability surpass those of some environmentally friendly alternatives (such as fully water-blown foam).
Low-Density Foaming Capability: This allows for the production of low-density foam (30-40 kg/m³) while maintaining structural strength and reducing material waste.
