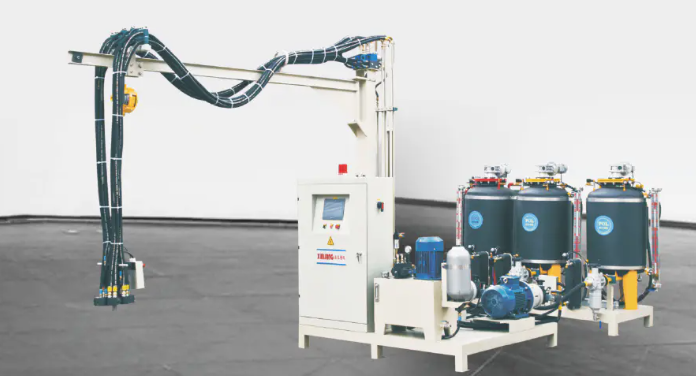

What are the functions of a three-component polyurethane high pressure foaming injection machine?

In simple terms, the main function of a three-component polyurethane high pressure foaming injection machine is to precisely measure and uniformly mix three independent chemical raw materials (components A, B, and C) under high pressure, and then instantly inject them into a mold or cavity to complete the complex polyurethane foaming process.

1. Core Function: Overcoming the Limitations of Two-Component Systems

Traditional polyurethane foaming machines are typically two-component (component A: isocyanate; component B: a mixture of polyol, foaming agent, and catalyst, etc.). The emergence of the three-component machine is mainly to overcome the limitations of the two-component system.

The third component (component C) is usually used to add special chemical substances that cannot coexist stably with the main material (component B) for a long time. These mainly include:

Physical foaming agents: The most common is water. Water reacts with isocyanate (component A) to produce CO₂ gas, which acts as a foaming agent. However, in a two-component foaming agent, if water is added to the polyol in component B beforehand, it will undergo hydrolysis, leading to deterioration of component B, unstable performance, and a very short shelf life.

Other physical foaming agents, such as certain low-boiling-point solvents, may also require separate storage and metering.

Reactive catalysts: To precisely control the "milky time," "gel time," and "non-sticky time" of the foaming reaction, highly active catalysts are needed. If these catalysts are pre-mixed in component B, they will cause component B to react slowly, increasing viscosity and also leading to unstable performance.

Adding them separately as component C ensures the long-term stability of the main material system and allows for "fine-tuning" of the reaction rate at the moment of injection by precisely controlling the catalyst ratio, adapting to the process requirements of different products.

Other special additives: Such as flame retardants, colorants (pigment pastes), antistatic agents, etc. When these additives have poor compatibility with the main material or affect its stability, they need to be set as an independent third component.

2. Functions and Advantages of a Three-Component Polyurethane High-Pressure Foaming Injection Molding Machine

Achieving More Complex Formulations and Product Performance:
Allows the use of water as a foaming agent, producing environmentally friendly, low-density soft and semi-rigid foams.
By independently controlling the catalyst, products with curing speeds ranging from ultra-slow to ultra-fast can be produced, meeting the needs of different molding processes (such as complex mold filling, continuous sheet production, etc.).

Flexible Adjustment of Final Product Properties:
Allows for flexible adjustment of final product properties, such as hardness, elasticity, and flame retardancy.

Ensuring Long-Term Stability of the Raw Material System:
This is the most important function. The three-component polyurethane high-pressure foaming injection molding machine separates unstable components, allowing the A and B main materials to be stored in large quantities and transported over long distances without deterioration, significantly reducing raw material loss and storage costs.

Extremely High Metering and Mixing Accuracy:
Utilizing a high-pressure impact mixing principle (usually achieved by a high-precision metering pump driven by a hydraulic or servo motor), the mixing chamber (gun head) experiences extremely high pressure, causing turbulence among the component raw materials and achieving instantaneous molecular-level uniform mixing.

Extremely High Metering and Mixing Accuracy:
Employing a high-pressure impact mixing principle (typically achieved by a high-precision metering pump driven by a hydraulic or servo motor), the mixing chamber (gun head) experiences extremely high pressure, creating turbulent flow among the component raw materials, achieving uniform mixing at the molecular level instantaneously. The three-component polyurethane high-pressure foaming injection molding machine features an independent, high-precision metering system for each component, ensuring extremely precise ratio control and guaranteeing high consistency and repeatability of product quality for every batch.

Improved production flexibility and efficiency: Computer programming allows for easy switching between different product formulations (i.e., the ratio of components A, B, and C), quickly adapting to multi-variety, small-batch production models.
An efficient mixing and cleaning system reduces material changeover time and raw material waste.

3. Main Application Areas

This equipment is commonly used in industries with high requirements for product performance and production processes:
Automotive Industry: Production of foam fillers for car seats, headrests, armrests, dashboards, headliners, and door panels.
Home Appliance Industry: Injection foaming for insulation layers in refrigerators, freezers, and water heaters.
Building Materials Industry: Production of polyurethane composite sandwich panels and on-site spraying/injection of building insulation.
Furniture Industry: Manufacturing slow-rebound (memory foam) and high-rebound foam for high-end sofas and mattresses.
Footwear Industry: Production of polyurethane soles for athletic and casual shoes.
